AS60 AC Servo Motors |
|
|
|
Electrical Specifications |
|
|
|
|
AS60-30-006E25 |
AS60-30-013E25 |
AS60-30-020E25 |
Rated Power (W) |
200 |
400 |
600 |
Rated Voltage (V) |
220 |
220 |
220 |
Rated Current (A) |
1.5 |
2.8 |
3.5 |
Rated Speed (RPM) |
3000 |
3000 |
3000 |
Rated Torque (N.m) |
0.63 |
1.27 |
1.91 |
Peak Torque (N.m) |
1.91 |
3.8 |
5.73 |
Peak Current (A) |
4.5 |
8.4 |
10.5 |
Voltage Constant (V/1000r/min) |
28 |
28 |
28 |
Torque Coefficient (N.m/A) |
0.42 |
0.5 |
0.55 |
Rotor Inertia (Kg.m2) |
0.17x10-4 |
0.3x10-4 |
0.44x10-4 |
Resistance (Ω) |
11.6 |
5.8 |
3.5 |
Inductance (mH) |
22 |
12 |
8.47 |
Electrical Time Constant (ms) |
1.9 |
2.1 |
2.4 |
Weight (Kg) |
1.2 |
1.4 |
1.8 |
Encoder Resolution (PPR) |
2500 |
2500 |
2500 |
Body Length (mm, without brake) |
116 |
141 |
169 |
Body Length (mm, with brake) |
164 |
189 |
217 |
Insulation Class |
Class B (130℃) |
Safety Grade |
IP64 |
Operating Enrivoment |
Temperature: -20℃ ~ +50℃ Humidity: under<90% (No Dewing) |
Storage Enrivoment |
Temperature: -30℃ ~ +60℃ Humidity: under<90% (No Dewing) |
Winding Connector |
Winding Wires |
U (Red) |
V (Yel) |
W (Blu) |
PE (Yel-grn-Blk) |
Pin No. |
1 |
2 |
3 |
4 |
Encoder Connector |
Signal Wires |
5V |
0V |
B+ |
Z- |
U+ |
Z+ |
U- |
A+ |
V+ |
W+ |
V- |
A- |
B- |
W- |
PE |
Pin No. |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
1 |
Color |
Red |
Blk |
Grn |
Yel
Blk |
Brn |
Yel |
Brn
Blk |
Blu |
Gry |
Wht |
Gry
Blk |
Blu
Blk |
Grn
Blk |
Wht
Blk |
|
|

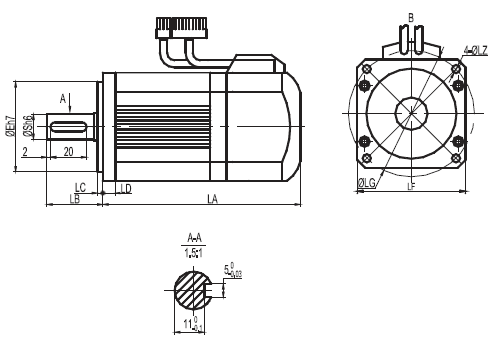

AS60-30-006E25 |
AS60-30-013E25 |
AS60-30-020E25 |
LA |
116 |
141 |
169 |
LB |
30 |
LC |
3 |
LD |
7 |
LE |
50 |
LF |
60 |
LG |
70 |
LZ |
4.5 |
S |
14 |
S1 |
14.9 |
|
|
Model |
Main Specs |
|
MDB08IL |
AC220V, 0.8KW |
|
MDB13IM |
AC220V, 1.3KW |
|
MDB20IM |
AC220V, 2.0KW |
|
MDB25IH |
AC220V, 2.5KW |
|
MDB50IH |
AC220V, 5.0KW |
|
|
|
|
|
