15PM 20PM Series PM Stepper Motor
Action
<<
BACK
Print This Page
Email This Page
Save to Favorites
Products Name:
15PM 20PM PM Stepper Motor
Model:
15PM 20PM PM Stepper Motor
Details
SPECIFICATIONS:
Model
Step
Angle
(deg)
No.of
phase
Voltage
(V)
Current
(A)
Resistance
(Ω)
Holding
torque
(g.cm)
Deent
torque
(g.cm)
Rotor Inertia
(g.cm
2
)
Leads
Wdg
Fig
15PM20L01
18
2
5
0.5
10
27
10
0.3
-
-
1
15PM20L02
18
2
12
0.065
190
40
10
0.3
-
-
2
15PM20L03
18
2
5
0.25
20
30
10
0.3
-
-
2
15PM20L04
18
2
12
0.24
50
35
10
0.3
-
-
2
20PM20L01
18
2
5
0.5
10
75
30
0.6
-
a
3
20PM20L02
18
2
5
0.4
13
65
30
0.6
-
-
4
*Note: We can also manufacture products according to customer's requirements.

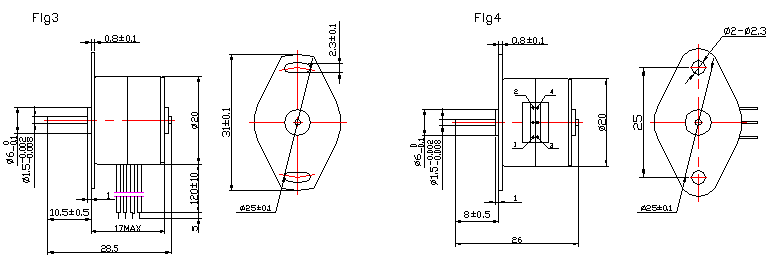

FIGURE:
WIRING DIAGRAM :
