Products Name: PM Stepper Gear Motor
Model: 15PMG, 25PMG, 35PMG, 42PMG, 62PMG
Details
SPECIFICATIONS (at Constand Voltage driver only)
Precision PM Stepper Gear motor:
Model
Step
Angle
(deg)
No.of
phase
Voltage
(V)
Current
(mA)
Resistance
(Ω)
Moderating
Ratio
Max. Starting
Frequency
(pps)
Pullin
Torque
(g.cm/pps)
Holding
Torque
(g.cm)
Wdg
Fig
15PMG01 18/150 2 5 420 12 1/150 800 450 2500 - 4
15PMG50-05 18/50 2 5 500 10 1/50 1280 280/200 1350 b 4
15PMG102.5-01 18/102.5 2 5 500 10 1/102.5 1000 350/200 2000 b 4
25PMG05-01 7.5/5 2 2.6 520 5 1/5 450 75/200 800 b 10
25PMG05-02 7.5/5 2 3.5 364 9.6 1/5 420 100/200 500 b 10
25PMG10-01 7.5/10 4 5 500 10 1/10 720 400/100 1100 c 11
25PMG30-01 7.5/30 4 13.3 110 120 1/30 680 750/100 4000 c 12
25PMG30.3-01 15/30.3 2 7 280 25 1/30.3 610 500/300 3000 b 14
25PMG76-01 15/76 4 5 250 20 1/76 430 720/200 5000 c 14
35PMG01
7.5/19
4
24
218
110
1/19
300
2300/200
5000
a
5
35PMG08 7.5/8.4 4 12 400 30 1/8.4 360 800/300 1150 a 9
35PMG19 7.5/19 4 12 400 30 1/19 360 2500/200 10000 a 9
35PMG30 7.5/30 4 12 400 30 1/30 360 2500/300 12000 a 9
35PMG60 7.5/60 4 12 400 30 1/60 360 3000/300 12000 a 9
35PMG120 7.5/120 4 12 400 30 1/120 360 8000/300 15000 a 9
42PMG01 7.5/24 4 12 445 27 1/24 380 1600/200 13000 a 8
*Note: We can also manufacture products according to customer's requirements.

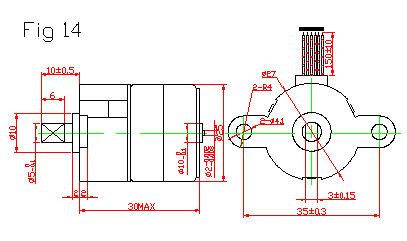

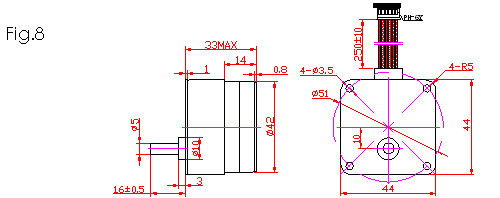

FIGURE:
